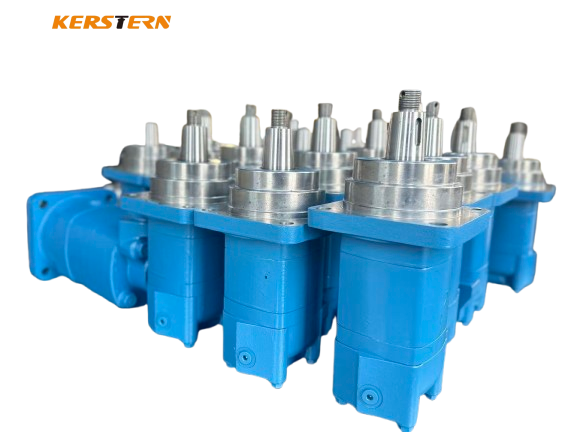

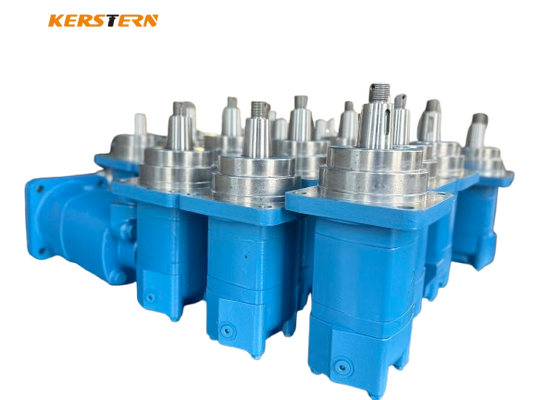

Compact Hydraulic Wheel Motor Featuring Displacement Options from 195 to 625 ml per Revolution Ideal for Mobile Equipment

Descrizione di prodotto

Highlights
Helical Design: Provides efficient torque transfer for precise grinding operations.
Low-Speed High-Torque: Ideal for heavy-duty grinding tasks with minimal vibrations.
Hydraulic Power: Ensures consistent performance across various grinding conditions.
Sticker Logo: Easy identification and branding for professional use.
No Specific Dimensions or Weights: Dimensions and weights vary based on model.

Main Specification


Advantages
1. Low start-up pressure;
2. Shaft seal can bear high back pressure;
3. The motor can be used in parallel or series configuration;
4. Distribution system can meet the requirements of low noise units;
5. Compact volume and easy installation;
6. High torque.

Note
1. Don’t work over the max pressure

2. The drain port must be connected to the return circuit

3. Don’t brake when the motor is dynamic status
4. If the system has pilot pump,use pilot oil to open the brake, otherwise , the working pressure don’t exceed 150 bar

5. The oil temperature don’t exceed 80℃

6. Oil recommended: Anti-wear hydraulic oils , viscosity at least 13cSt in working

Applications
These motors can be used in industrial machines (e.g. conveyors), mining machinery (e.g. drills, winches), working machines (e.g. bulldozers, crushers) and in shipbuilding industry (e.g. control systems, propellers) etc.

KM6B Brake motor

KM6B motor is KM6 brake motor with multi-disc brake that is released by a hydraulic pressure ,and has good brake performance ,the motor has same work performance as BM6 when the brake is released.

Packing:
